Period

One cycle of a sinusoid is $ 2\pi$ radians.

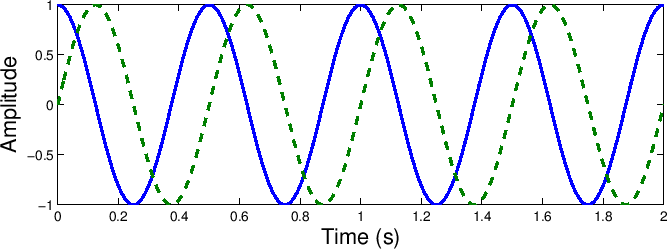

Figure 6: Sinusoid.
\scalebox{0.75}{\includegraphics{eps/plotsin3.eps}}

Since sinusoids are periodic with period $ 2\pi$, an initial phase of $ \phi$ is indistinguishable from an initial phase of $ \phi
\pm 2\pi$. We may therefore restrict the range of $ \phi$ so that it does not exceed $ 2\pi$. Typically we choose the range

$\displaystyle -\pi < \phi < \pi,
$

but we many also encounter

$\displaystyle 0 < \phi < 2\pi.
$

The period $ T$ of a sinusoid is the time (in seconds) it takes to complete one cycle.
