Beat Notes

What happens when we add two frequencies that are not harmonically related?

The beat note comes about by adding two sinusoids that are very close in frequency.

**Figure 8:** Beat Note made by adding sinusoids at frequencies 218 Hz and 222 Hz.
$\scalebox{0.8}{\includegraphics{eps/beatspec.eps}}$

The resulting waveform shows that there is a periodic, low frequency amplitude envelope superimposed on a higher frequency sinusoid.

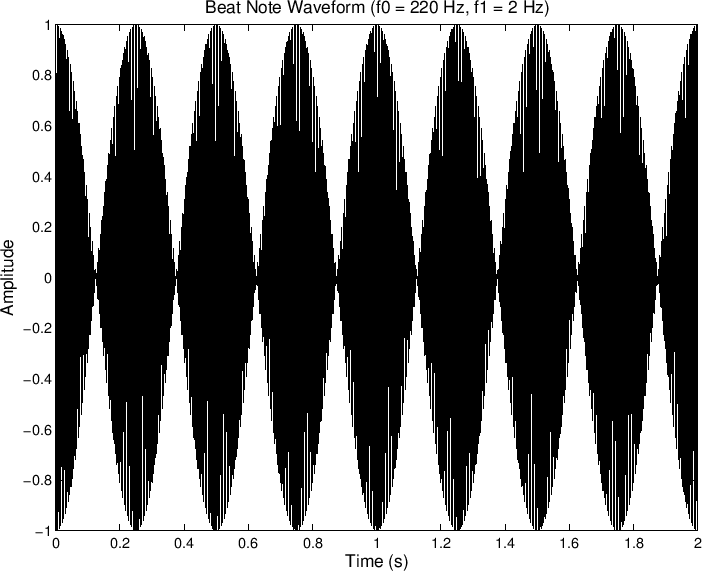

**Figure 9:** Waveform of a Beat Note.
$\scalebox{0.9}{\includegraphics{eps/beatwav.eps}}$

What is going on?

``Music 171: Additive Synthesis'' by Tamara Smyth, Department of Music, University of California, San Diego (UCSD).
